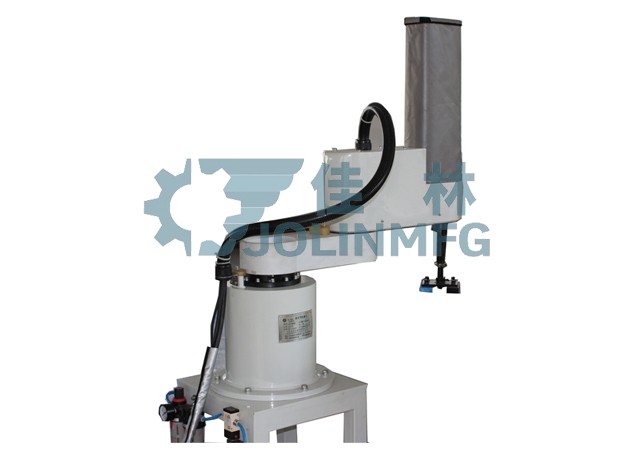

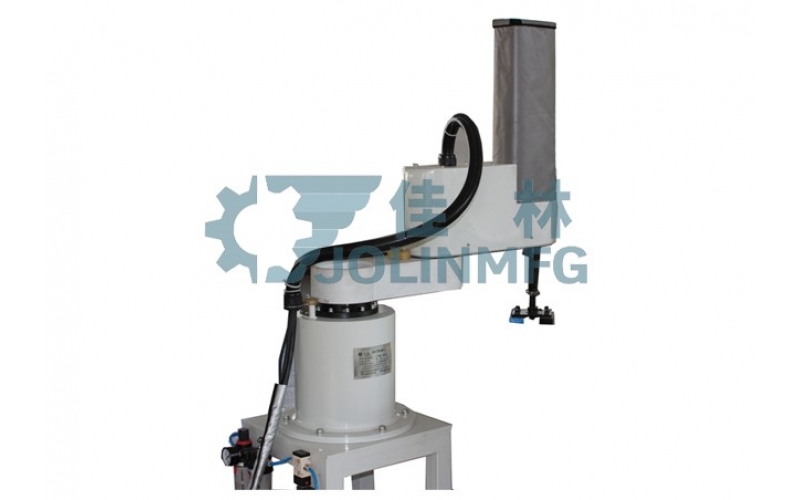

Product Description: scara robot used in chemical, beverage, food, pharmaceutical, plastics and other production enterprises of various shapes cartons, bags, filling, plastic parts and other products for automatic identification, sorting, handling, entire column, assembly, packing and other activities. Has a simple structure, space-saving, easy maintenance and so on. All controls can be completed on the touch screen, easy to operate.
| SCARA Robots | ||
| Range of motion | 1st + 2nd joint | 600mm/s |
| Third joint | 450mm/s | |
| Fourth joint | ±360° | |
| The maximum speed | 1st + 2nd joint | 4000mm/s |
| Third joint | 700mm/s | |
| Fourth joint | 780°/s | |
| Repeatability | 1st + 2nd joint | ±0.3mm |
| Third joint | ±0.2mm | |
| Fourth joint | ±0.05° | |
| payload weight | Rated | 5kg |
| Maximum | 10kg | |
